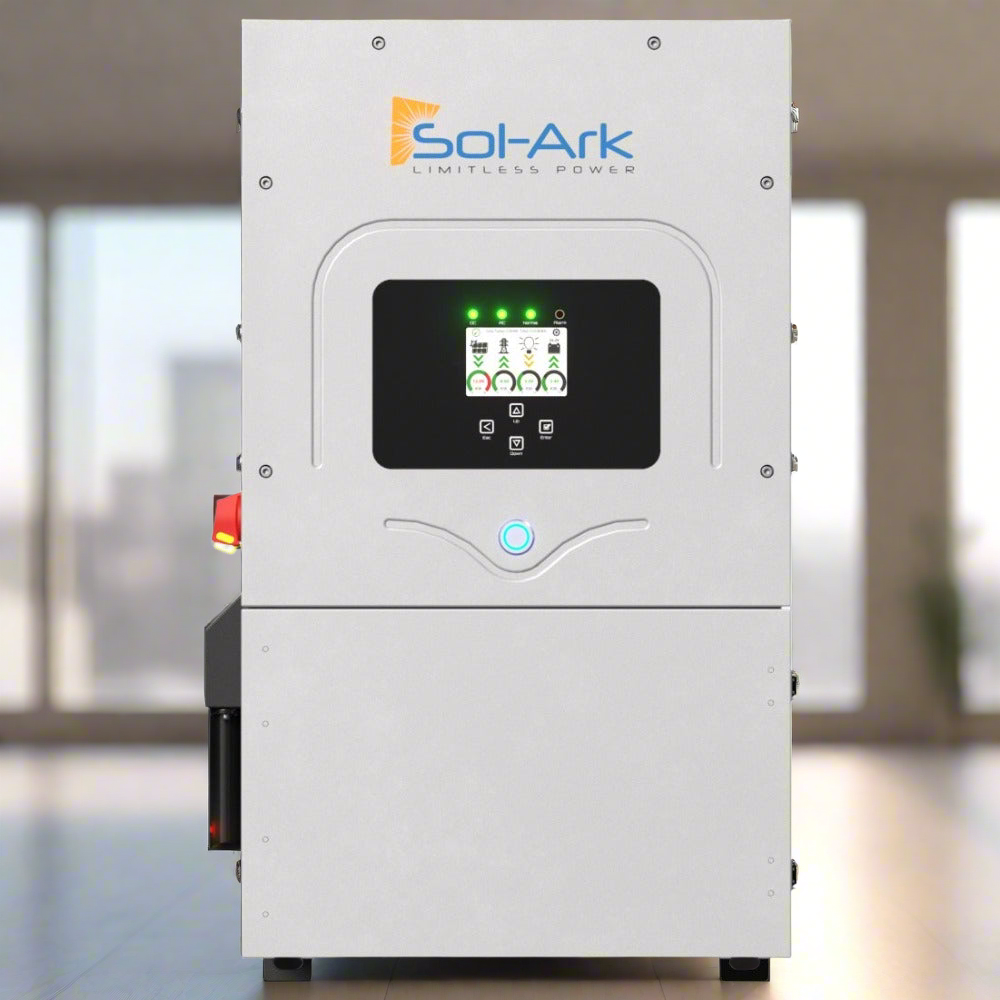

Sol-Ark 12K 120/240/208V 48V [All-In-One] Pre-Wired Hybrid Solar Inverter | 10 Year Warranty
$5,299.00
⭐ Authorized Sol-Ark Dealer
⭐ Fast & Free Shipping + No Sales Tax
⭐ Easy 30-Day Returns & Price Beat Guarantee
⭐ Flexible Financing Available
⭐ Full Manufacturer Warranty Included
SOL-ARK 12K-2P Hybrid Inverter Overview
The Sol-Ark 12k is a highly preferred option for both off-grid and on-grid solar inverters. It is a comprehensive and pre-installed inverter that includes charge controllers and several other built-in features as standard.
SOL-ARK 12K-2P Hybrid Inverter Features & Benefits
Easy Install
The Sol-Ark INVERTER comes with everything you need to install it. Nicely packaged for added efficiency.
Fleet Management
With Sol-Ark’s remote access features and app you are never out of touch to quickly repair or adjust any system without being on site.
Battery Agnostic
Sol-Ark inverters also do not have expensive battery restrictions like other solar inverters do, and can be used with a wide variety of 48V battery chemistries, from lead to lithium.
SOL-ARK 12K-2P Hybrid Inverter Specifications
Input Data (PV)
- Max. Allowed PV Power (STC): 13,000W
- Rated MPPT Operating Voltage Range: 175 – 425V
- MPPT Voltage Range: 150 – 500V
- Startup Voltage: 125V
- Max. Input Voltage: 500V
- Max. Operating Input Current per MPPT: 20A (self-limiting)
- No. of MPP Trackers: 2
- No. of PV Strings per MPPT: 2
- Max. AC Coupled Input: 9,600W
Output Data (AC)
- Nominal AC Voltage: 120/240V, 120/208V, 220V
- Grid Frequency: 50 / 60Hz
- Real Power, max continuous: 9,000W
- Max. Output Current: 37.5A
- Peak Apparent Power (10s, off-grid): 16,000VA @ 240V
- Peak Apparent Power (100ms, off-grid): 25,000VA @ 240V
- Max Output Fault Current (100ms): 104A
- Max. Grid Passthrough Current: 63A
- Power Factor Output Range: +/- 0.9 adjustable
- Backup Transfer Time: 4ms
- CEC Efficiency: 96.5%
- Max Efficiency: 97.5%
- Design (DC to AC): Transformerless DC
- Stackable: Up to 9 in parallel
Battery Input Data (DC)
- Battery Technologies: Lithium / Lead Acid
- Nominal DC Voltage: 48V
- Operating Voltage Range: 43 – 63V
- Capacity: 50 — 9900Ah
- Max. Battery Charge / Discharge Current: 185A
- Charging Controller: 3-Stage with Equalization
- Grid to Battery Charging Efficiency: 96.0%
- External Battery Temperature Sensor (BTS): Included
- Automatic Generator Start (AGS): 2 Wire Start – Integrated
- BMS Communication: CANBus & RS485 MODBUS
General Data
- Dimensions (H x W x D): 750 x 450 x 254 mm (29.5 x 17.7 x 10 in)
- Weight: 35.4 kg / 78 lb.
- Enclosure: IP65 / NEMA 3R
- Ambient Temperature: -25~55°C, > 45°C Derating
- Noise: < 30 dB @ 25°C (77°F)
- Idle consumption: – No Load 60W
- Communication and Monitoring: Wi-Fi & LAN Hardware Included
- Standard Warranty: 10 Years
Protection and Certifications
- Certifications and Listings: UL1741-2010/2018, IEEE1547a 2003/2014, FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H
- PV DC Disconnect Switch — NEC 240.15: Integrated
- Ground Fault Detection — NEC 690.5: Integrated
- PV Rapid Shutdown Control — NEC 690.12: Integrated
- PV Arc Fault Detection — NEC 690.11: Integrated
- PV Input Lightning Protection: Integrated
- PV String Input Reverse Polarity Protection: Integrated
- AC Output Breaker – 63A: Integrated
- 250A Battery Breaker / Disconnect: Integrated
- Surge Protection: DC Type II / AC Type II
Warranty and Reliability
Comes with our award winning iron clad warranty and our 7 day a week live Engineering Support to assist you in all your needs.
What’s in The Box
- 1 x SOL-ARK 12K-2P Hybrid Inverter
