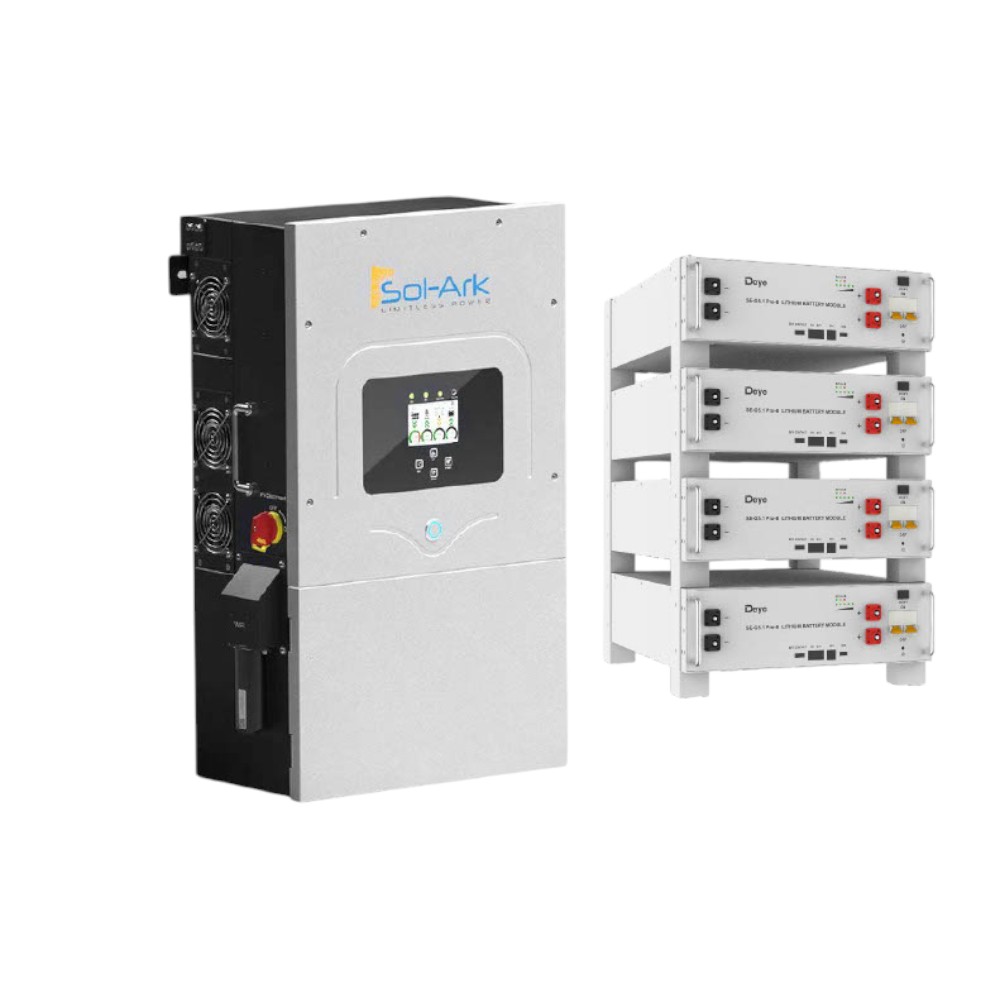

Sol-Ark 12K-2P Hybrid Inverter With Four Deye LFP 5 kWh Batteries (20kwh)
$13,949.00
Key Features:
- 9kWac Hybrid Inverter
- 12kWac Solar System
- 20kwh Batteries
- 50A Grid Pass-Through
- Fast and Easy Backup
- Load Side Connection
- Automatic 9kW Essentials Backup
- Avoid Service Upgrade
- 120/240V Backup
- No External Transfer Switch Required
- Flexible Battery Choice
- 185A Battery Charger
- 48V Battery Port
- UL9540 Options Available
- Seamless Grid Control
- Multi-Season Time-of day Settings
- Automatic 5ms Transfer Time
- Virtual Power Plant Ready
- EV or Generator Ready
- Two-Wire Start Generator
- Automatic Shed EV Based on Time of Use
- Single Circuit Smart Load Functionality

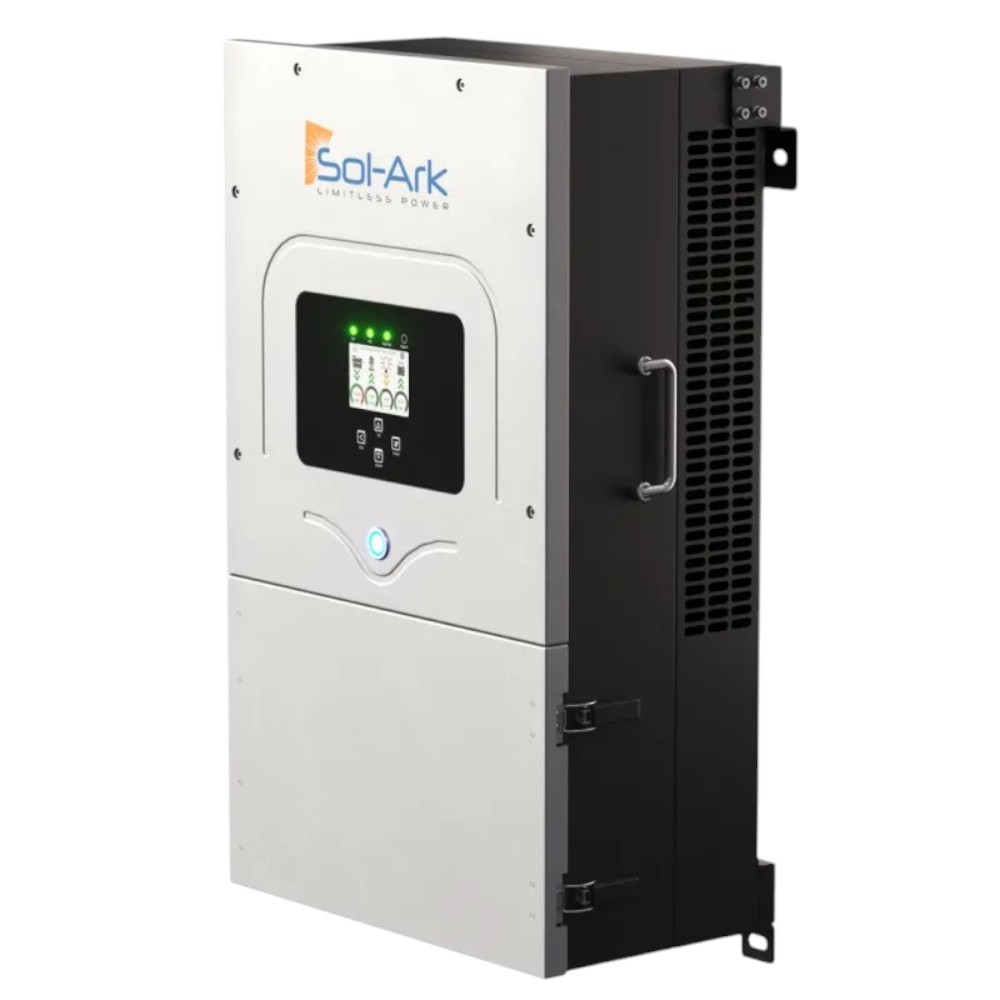

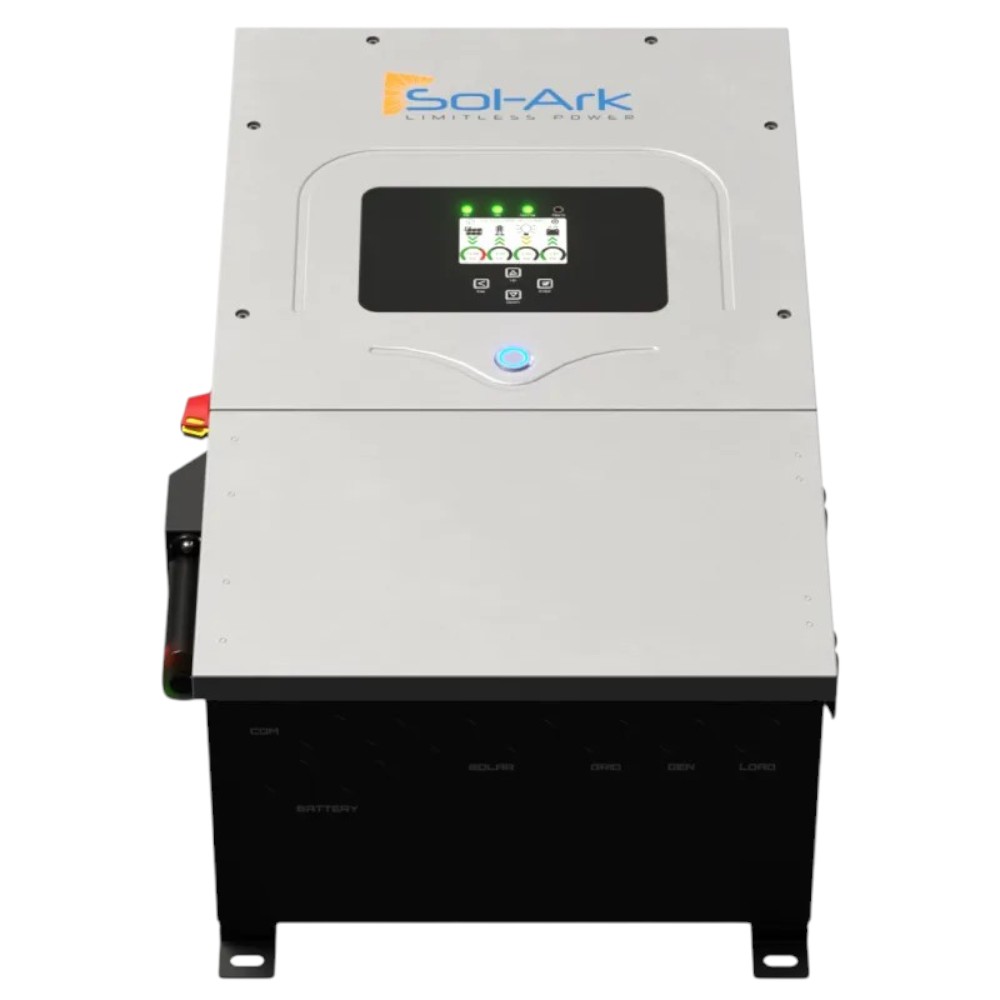

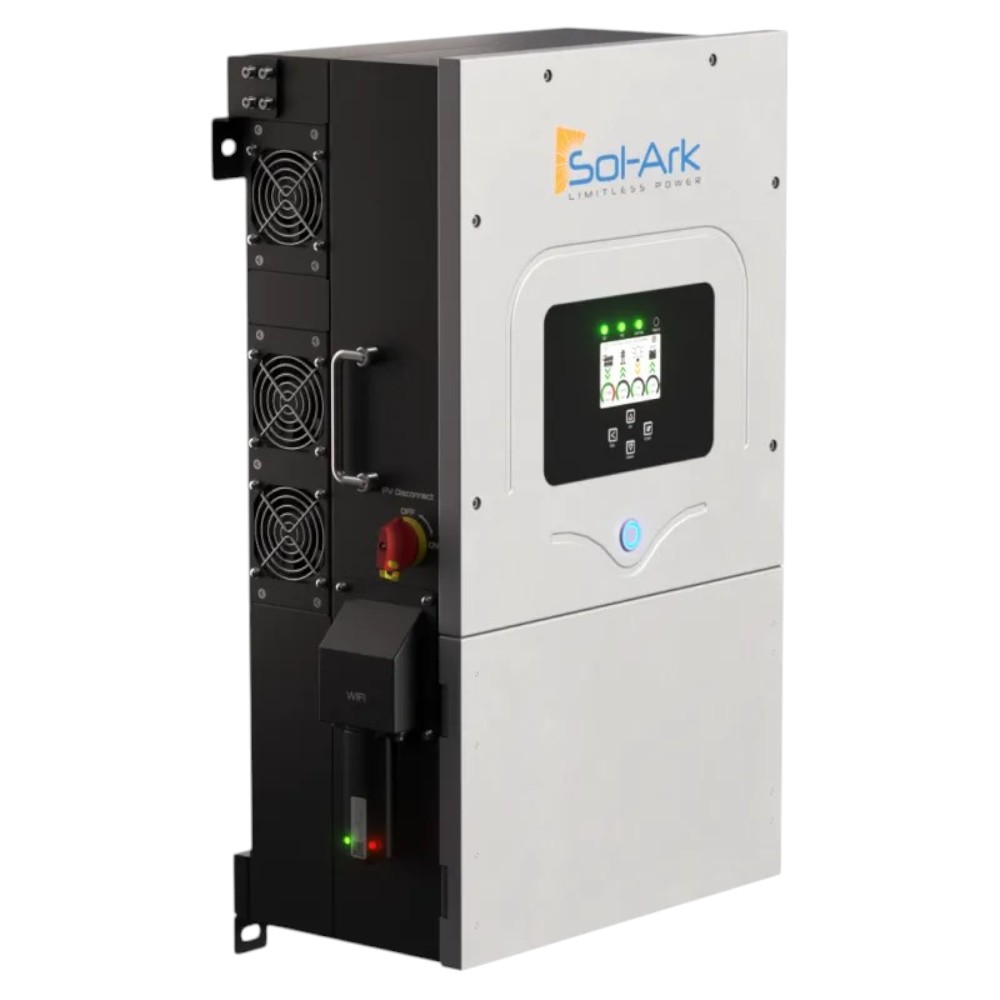

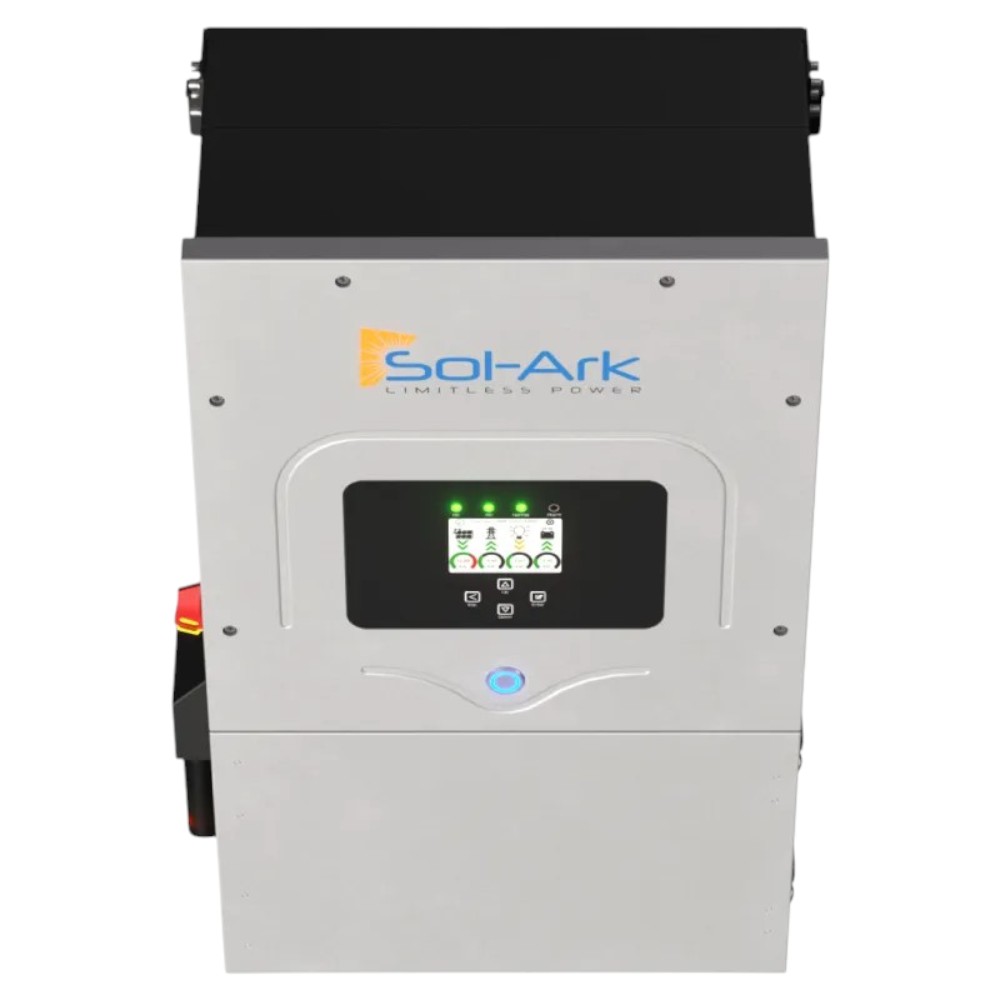

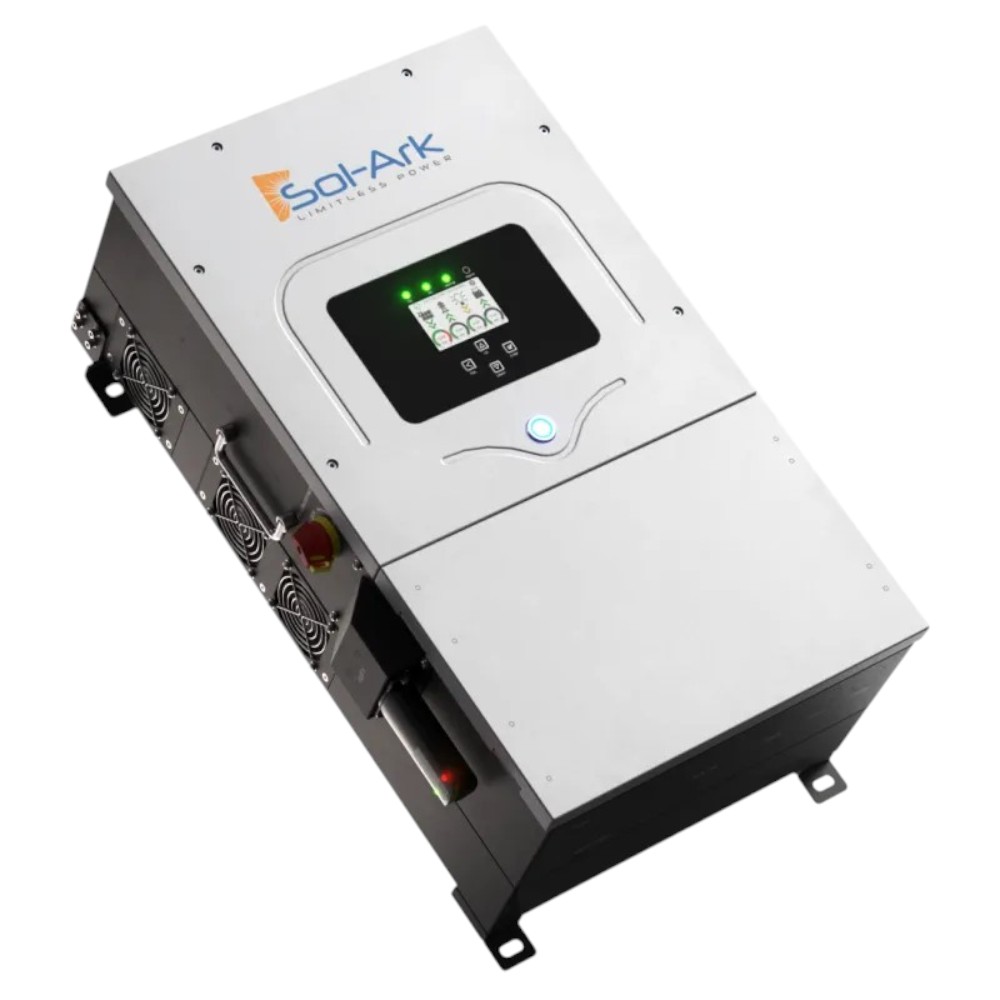

Sol-Ark® Essentials Hybrid Inverter
The Sol-Ark® Essentials hybrid inverter is a cutting-edge energy management system that allows homeowners to efficiently harness solar energy for their power needs. The system combines the capabilities of an inverter with battery storage and grid interaction, making it a versatile and powerful solution for a wide range of applications.
- 12K-2P Hybrid Solar Inverter: This model can handle up to 12kW of solar energy input, allowing you to generate power from your solar panels. Its hybrid nature means it can also integrate with battery storage and work with the grid, giving you a flexible power management solution. The system is designed to create a partial home backup, meaning it can support critical appliances such as refrigerators, lighting, and other essential devices during power outages.
- Off-Grid Capabilities: In addition to grid-tied operation, the inverter can operate off-grid, providing continuous power in areas where the grid is unavailable or unreliable. It can also support and charge electric vehicles (EVs) or backup generators, which can reduce your dependency on the grid and lower your electricity bills.
- NEM 3.0 Ready: As utility companies move toward new Net Energy Metering (NEM) policies, the Sol-Ark® Essentials inverter is built to work seamlessly under these guidelines. NEM 3.0 incentivizes homeowners to use their solar-generated energy during peak rate hours, significantly increasing savings.
- Time-of-Use (TOU) Functionality: With TOU, the inverter smartly shifts energy use by storing solar energy in batteries during low-rate periods and using it when electricity rates are highest. This reduces your reliance on the grid when electricity is most expensive. The system’s built-in TOU management automatically adjusts energy storage and grid usage, optimizing power flow based on the time of day.
- User-Friendly Interface: The LCD touchscreen makes it simple to configure and manage settings. You can program the system based on the day of the week, as well as different seasons, ensuring your system runs efficiently year-round.

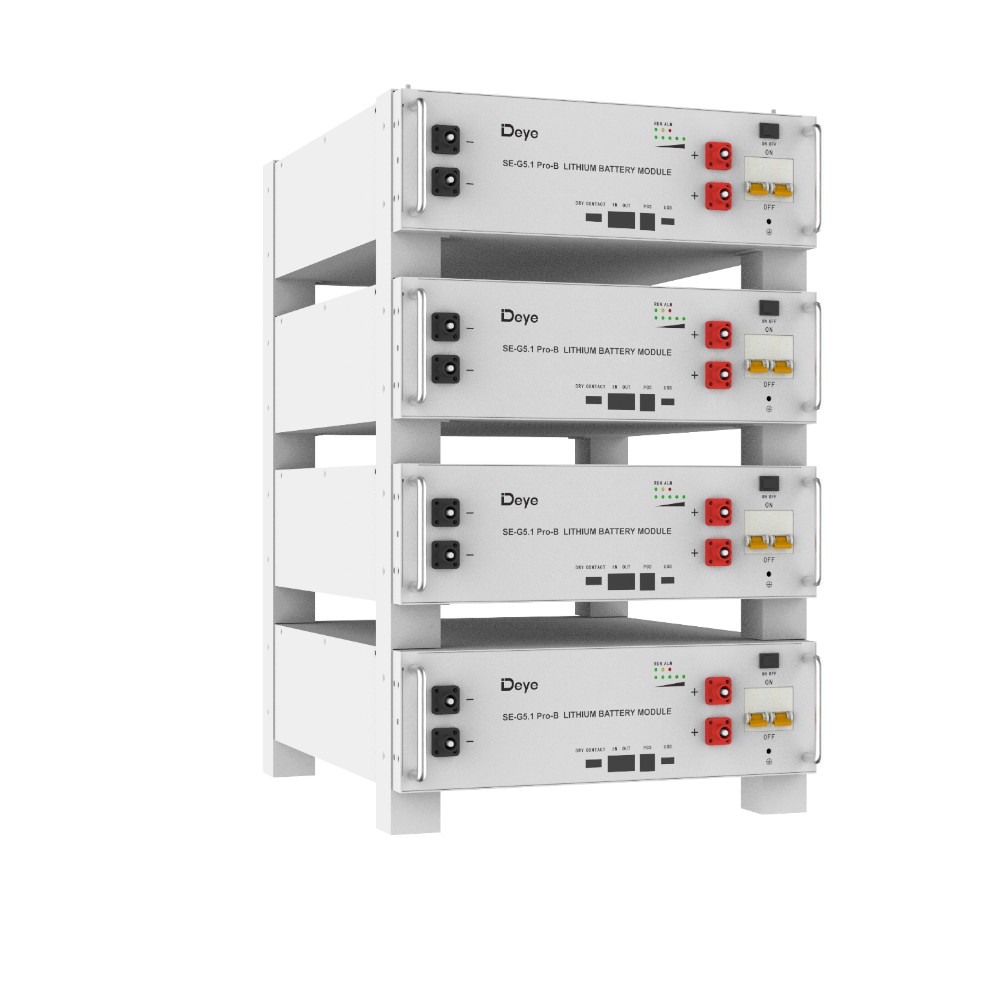

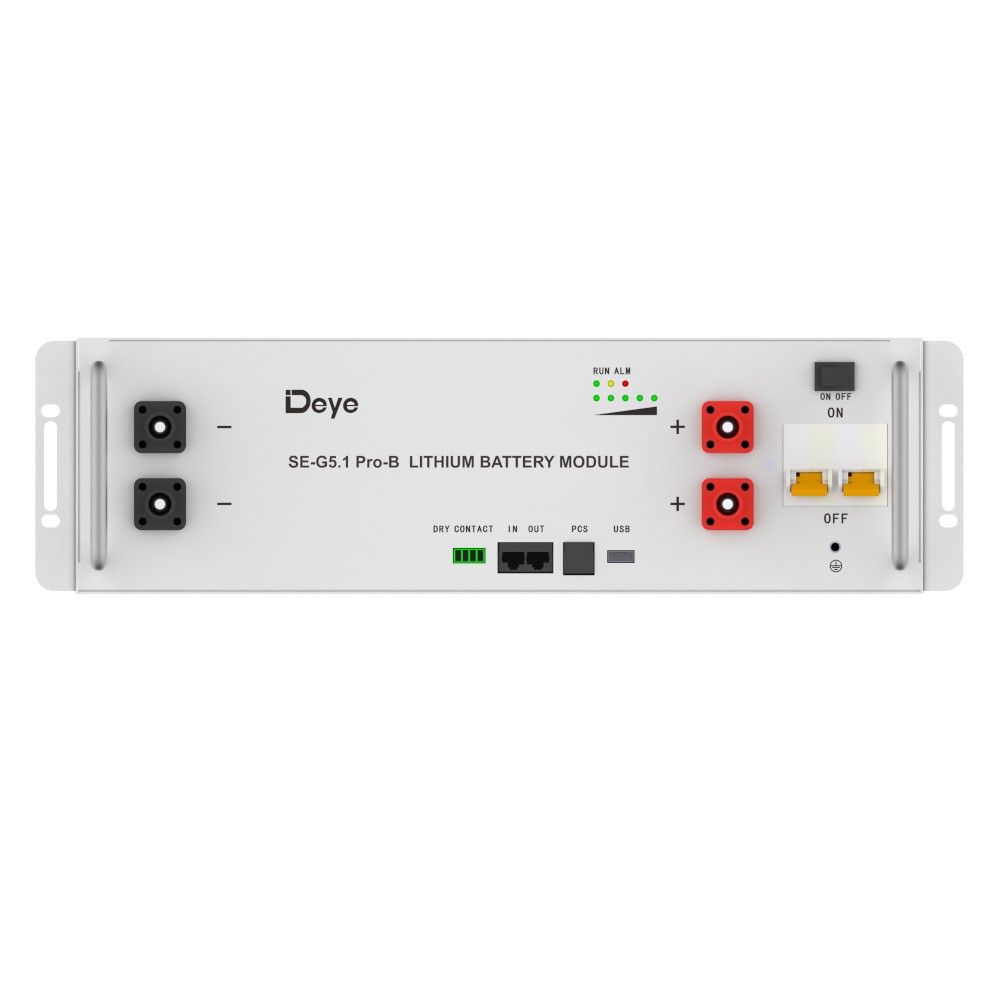

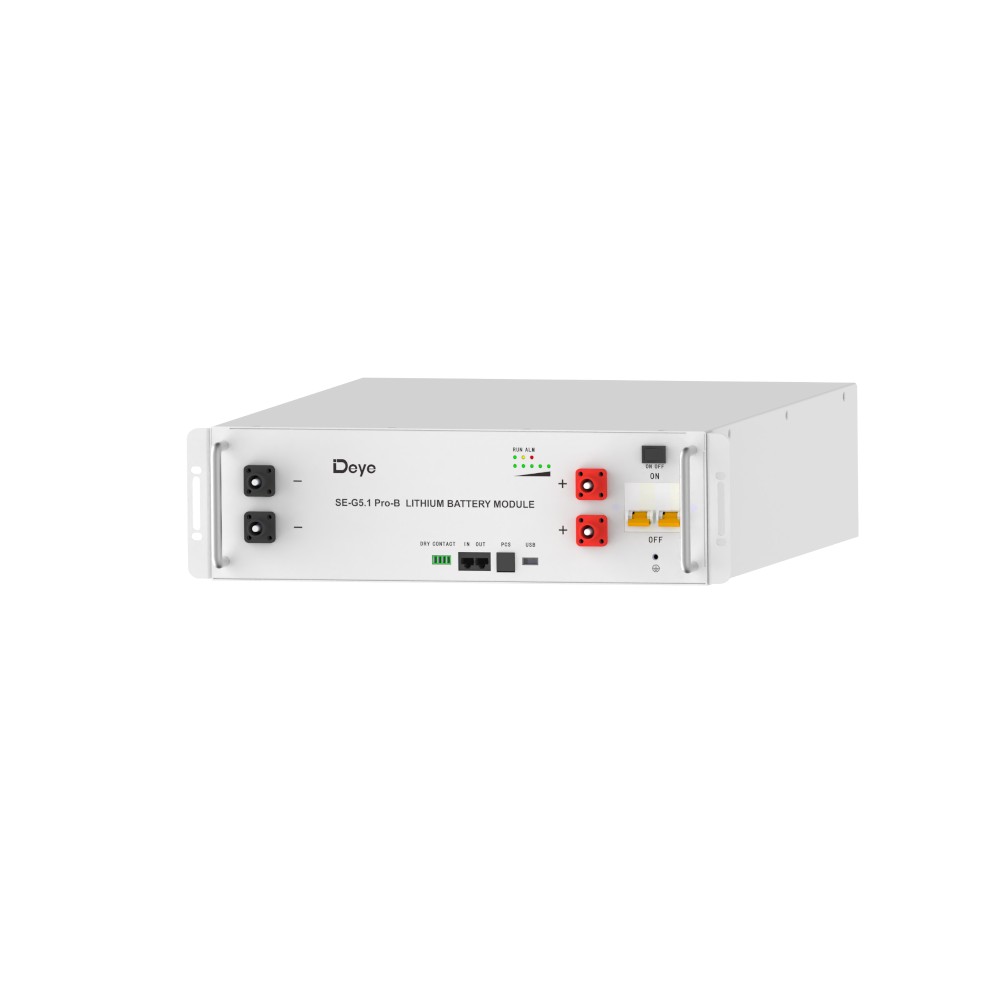

Deye SE-G5.1 Pro-B Lithium Iron Phosphate (LFP) Battery
The Deye SE-G5.1 Pro-B battery offers a state-of-the-art energy storage solution for homes and businesses. It uses lithium iron phosphate (LFP) technology, which is known for its superior safety, longevity, and efficiency compared to traditional lithium-ion batteries.
- Safe and Reliable: The LFP chemistry is safer than other battery types because it does not use cobalt, which can be toxic and prone to overheating. The Deye battery is designed with an intelligent Battery Management System (BMS), which monitors and protects the battery from overcharging, over-discharging, and short circuits, ensuring long-term reliability and safety.
- Modular Design: The modular nature of the SE-G5.1 Pro-B battery means it can be scaled up to meet different energy storage needs. For example, you can connect up to 64 units in parallel, giving you a storage capacity of up to 327 kWh. This makes it ideal for both small homes and large commercial applications.
- Increased Self-Consumption: By storing excess solar energy in the battery, you can increase your self-consumption ratio, meaning you rely less on the grid and more on your own solar-generated power. This is especially useful during cloudy days or at night when the solar panels are not producing energy.
- High Discharge Power and Temperature Range: The battery can operate in a wide temperature range of -20°C to 55°C, making it suitable for a variety of climates. It is also designed to handle high discharge power, meaning it can supply a large amount of energy quickly when needed.
- Easy Maintenance and Monitoring: The battery system supports auto-networking, which simplifies the connection of multiple batteries, and allows for remote monitoring. Firmware upgrades can also be performed via USB, ensuring that the battery operates with the latest software without hassle.
- Eco-Friendly: The materials used in the Deye battery are environmentally friendly, non-toxic, and pollution-free, supporting sustainability goals for green energy adoption.
Specification
Battery Chemistry: | LiFePO4 |
Capacity (Ah): | 100 |
Scalability: | LFP |
kWh Capacity: | Max. 64 pcs pack (327kWh) in parallel (Max. 32 pcs no external setup) |
Nominal Voltage(V): | 51.2 |
Operating Voltage(V): | 43.2~57.6 |
Max Charge Voltage: | 5.12 |
Nominal Energy(kWh): | 33.6V – 43.8V |
Usable Energy(kWh): | 4.6 |
Charge/Discharge Current(A): |
Recommend: 50 Max.: 100 Peak(2mins,25℃): 150 |
Recommend Depth of Discharge: | 90% |
Dimension(W/H/D ,mm): | 440*133*540 |
Weight Approximate(kg): | 45 |
Master LED Indicator: | 5LED(SOC:20%~SOC100%),3LED (working, alarming, protecting) |
IP Rating of Enclosure: | IP20 |
Operating Temperature: | Charge: 0~55℃( Optional heating: -20℃~55℃ ), Discharge: -20℃~55℃ |
Storage Temperature: | 0~35℃ |
Humidity | 5%~95% |
Altitude | ≤2000m |
Cycle Life | ≥6000(25℃±2℃,0.5C/0.5C,90%DOD,70%EOL) |
Installation | Wall-Mounted, Floor-Mounted, Rack-Mounted (19-inch standard cabinet, cabinet depth ≥600mm ) |
Communication Port | CAN2.0, RS485 |
Certification | UN38.3, IEC62619, CE,UK,VDE2510-50,CEI 0-21,FCC, UL1973, UL9540A |
Warranty Period | 10years |
