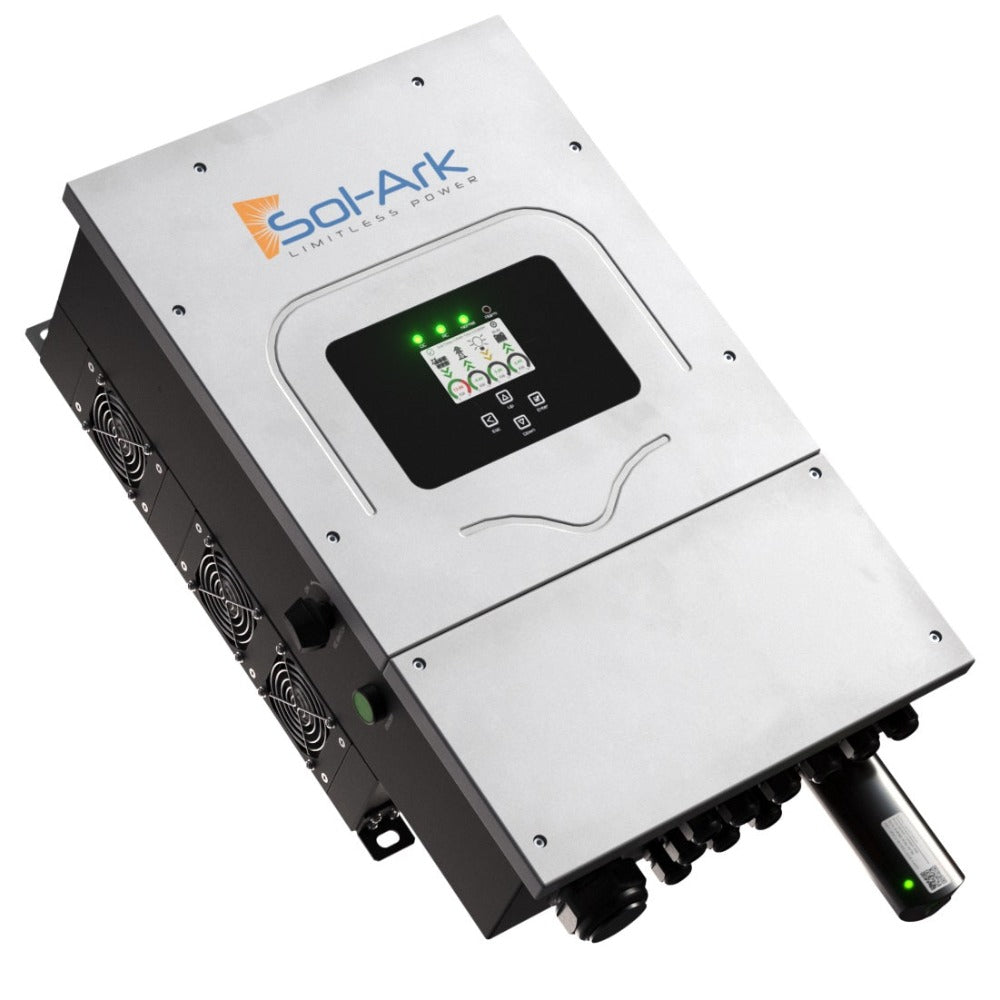

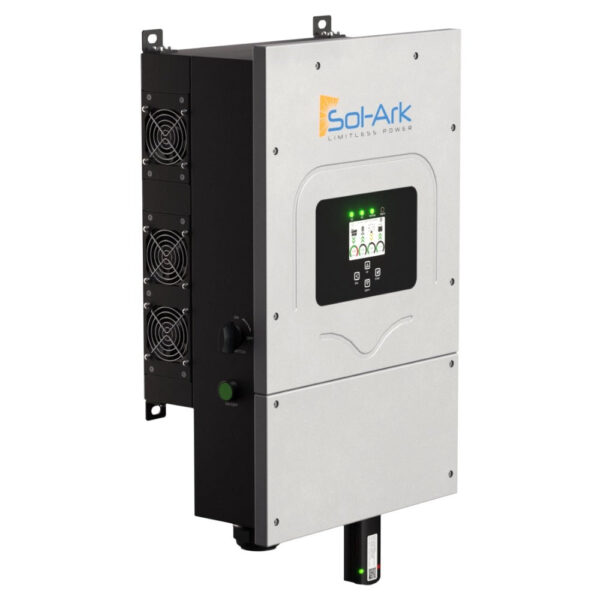

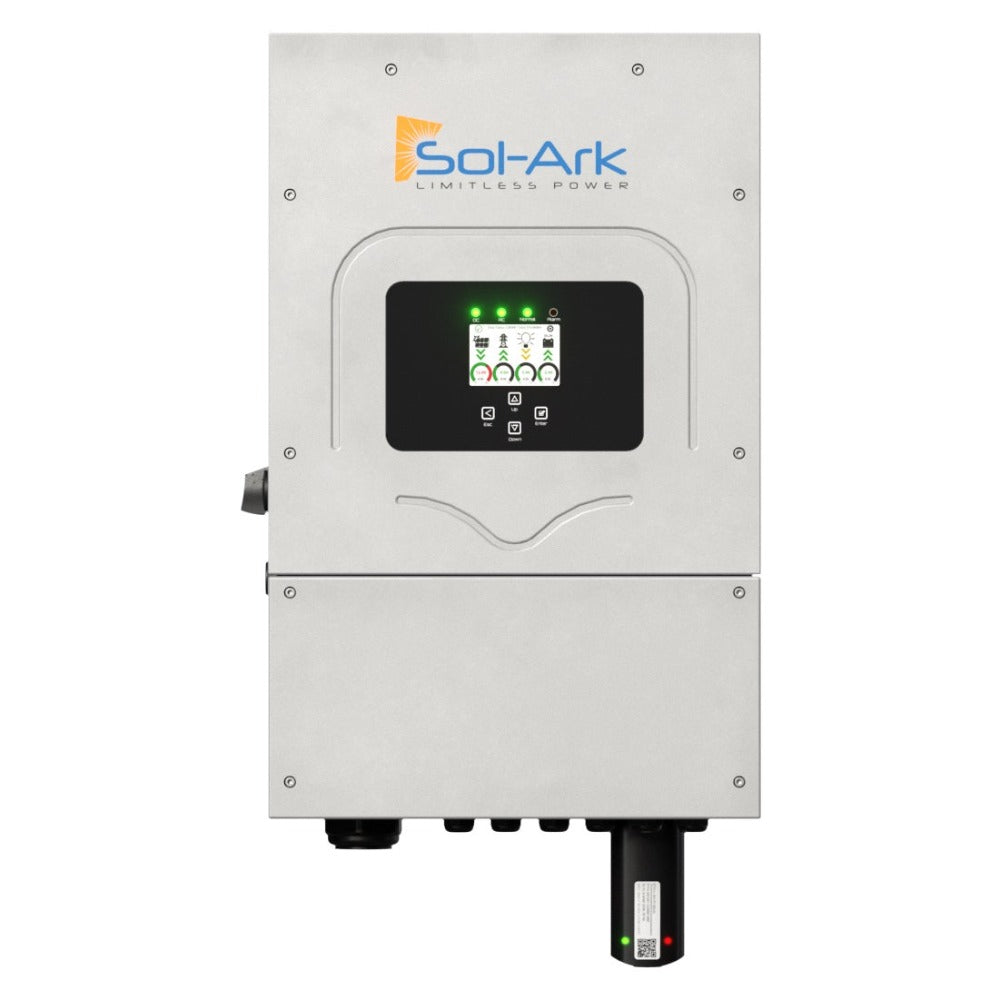

Sol-Ark 8K 120/240/208V 48V [All-In-One] Hybrid Solar Inverter | 10 Year Warranty

$4,999.00

⭐ Authorized Sol-Ark Dealer

⭐ Fast & Free Shipping + No Sales Tax

⭐ Easy 30-Day Returns & Price Beat Guarantee

⭐ Flexible Financing Available

⭐ Full Manufacturer Warranty Included

SKU: 8K-2P Category:
Description

SOL-ARK 8K-2P Hybrid Inverter Overview

A powerful solar hybrid inverter that is battery-agnostic for off-grid backup options for homeowners

SOL-ARK 8K-2P Hybrid Inverter Features & Benefits

Easy Install

The Sol-Ark INVERTER comes with everything you need to install it. Nicely packaged for added efficiency.

Fleet Management

With Sol-Ark’s remote access features and app you are never out of touch to quickly repair or adjust any system without being on site.

Battery Agnostic

Sol-Ark inverters also do not have expensive battery restrictions like other solar inverters do, and can be used with a wide variety of 48V battery chemistries, from lead to lithium.

SOL-ARK 8K-2P Hybrid Inverter Specifications

Characteristics:

  • Manufacturer: Sol-Ark
  • Model: 8K-2P-N
  • Other Vendor Codes: Sol-Ark-8K-48-ST
  • Rated Power Output [W]: 8000
  • Length [mm (in)]: 30.0 in
  • Width [mm (in)]: 18.3 in
  • Depth [mm (in)]: 10.0 in
  • Weight [kg (lb)]: 78 lbs
  • Warranty [Years]: 5

Inverters:

  • Inverter Type: Hybrid inverter
  • Maximum/Peak Efficiency [%]: 97.5
  • CEC weighted efficiency @ 240V [%]: 96.5
  • Transformer / Transformerless: Transformerless DC
  • DC Power Rating [W]: 11000
  • Max. Input Power [W]: 11000
  • Max. Input Voltage [V]: 500
  • Max. Input Current [A]: 40
  • Min. DC voltage / start voltage [V]: 125
  • Min. DC voltage / start voltage [V]: 125
  • Number of DC String Inputs (Inlets): 4
  • Number of MPP Trackers: 2
  • Max. Input Power per MPPT [W]: 5500
  • Max. Input Voltage per MPPT [V]: 500
  • Max. Input Current per MPPT [A]: 20
  • Voltage Lower Limit for MPP Range [V]: 150
  • Voltage Upper Limit for MPP Range [V]: 425
  • DC Disconnection Type: Integrated
  • Reverse-Polarity Protection: true
  • Ground-Fault Isolation Detection: Integrated
  • AC Power Rating [W]: 8000
  • Nominal AC Power [W]: 8000
  • Max. AC Power [W]: 8000
  • AC voltage range [V]: 185-270
  • AC grid frequency [Hz]: 60
  • Max. output current [A]: 33.3
  • Nominal AC Voltage [V]: 120/240/208
  • Maximum AC Voltage Range [V]: 228
  • Nominal AC Frequency [Hz], range [Hz-Hz]: 60
  • Max. AC Line Current [A]: 63
  • AC Connection Type: L1/L2/Neutral/Ground
  • AC Input Wire Gauge Range [AWG]: 6 AWG – 4 AWG
  • Sleep (Night) Consumption [W]: 60
  • NEMA Enclosure Rating: NEMA 3R
  • Cooling Method: Integrated Fans
  • Ambient Temperature Range [°C(°F)]: -25°C to +55°C (-13°F to +131°F)
  • Display: LCD Touch Screen
  • Communication: Wi-Fi, LAN, CanBus, RS485
  • Basic Warranty [Years]: 5
  • Compliances: UL1741-2010/2018, IEE-E1547a-2003/2014, FCC 15 Class B, UL1741SA, CA Rule21, HECO Rule 14H
  • AC grid range [Hz]: 55-65
  • Max. recommended PV power (@ module STC): 11000

Solar Characteristics:

  • Max allowed PV Power: 11000W
  • Max PV Power Delivered to Battery & AC Outputs: 8000W
  • Max DC voltage: 500V @ 18A, 450V @ 20A
  • MPPT voltage range: 150-425V
  • Starting voltage: 125V
  • Number of MPPT: 2
  • Solar Strings per MPPT: 2
  • Max DC current per MPPT: 20A (self limiting)
  • Max AC Coupled Input (Micro/String Inverters): 9,600W

AC Output Characteristics:

  • Connections: 120/240/208V split phase
  • Continuous AC power to Grid (On-Grid): 8000W 33.3A L-L (240V)
  • Continuous AC power to Load (Off-Grid): 8000W 33.3A L-L (240V)
  • Surge AC power 10sec: 16,000VA L-L (240V)
  • Surge AC power 100ms: 25,000VA L-L (240V)
  • Parallel Stacking: No
  • Frequency: 60/50Hz
  • Continuous AC power with Grid or Generator: 15120W 63A L-L (240V), 7,560W 63A L-N (120V)
  • CEC Efficiency: 96.5% (Peak 97.5%)
  • Idle Consumption typical – no load: 60W
  • Sell back power modes: Limited to Household or Fully Grid-Tied
  • Design (DC to AC): Transformerless DC
  • Response Time (Grid-Tied to Off-Grid): 4ms
  • Power Factor: +/-0.9 – 1.0

Battery (optional) Characteristics:

  • Type: Lead-Acid or Li-Ion
  • Nominal DC Input: 48V
  • Capacity: 50 – 9900Ah
  • Voltage Range: 43.0 – 63.0V
  • Continuous Battery charging output: 185A
  • Charging curve: 3-stage w/ equalization
  • Grid to Battery Charging Efficiency: 96.0%
  • External temperature sensor: included
  • Current shunt for accurate % SOC: integrated
  • External Generator Start based on voltage or % SOC: integrated
  • Communication to Lithium battery: CanBus & RS485

General Characteristics:

  • NEMA-3R rated
  • Ambient Temperature (4 variable speed fans): -25 to 55C, >45C
  • Installation Style: Wall-Mounted
  • Wi-Fi & LAN Communication: included
  • Standard Warranty: 5 years
  • Optional Extended Warranty: 10 years

Warranty and Reliability

Comes with our award winning iron clad warranty and our 7 day a week live Engineering Support to assist you in all your needs.

What’s in The Box

  • 1 x SOL-ARK 8K-2P Hybrid Inverter

User Manual
