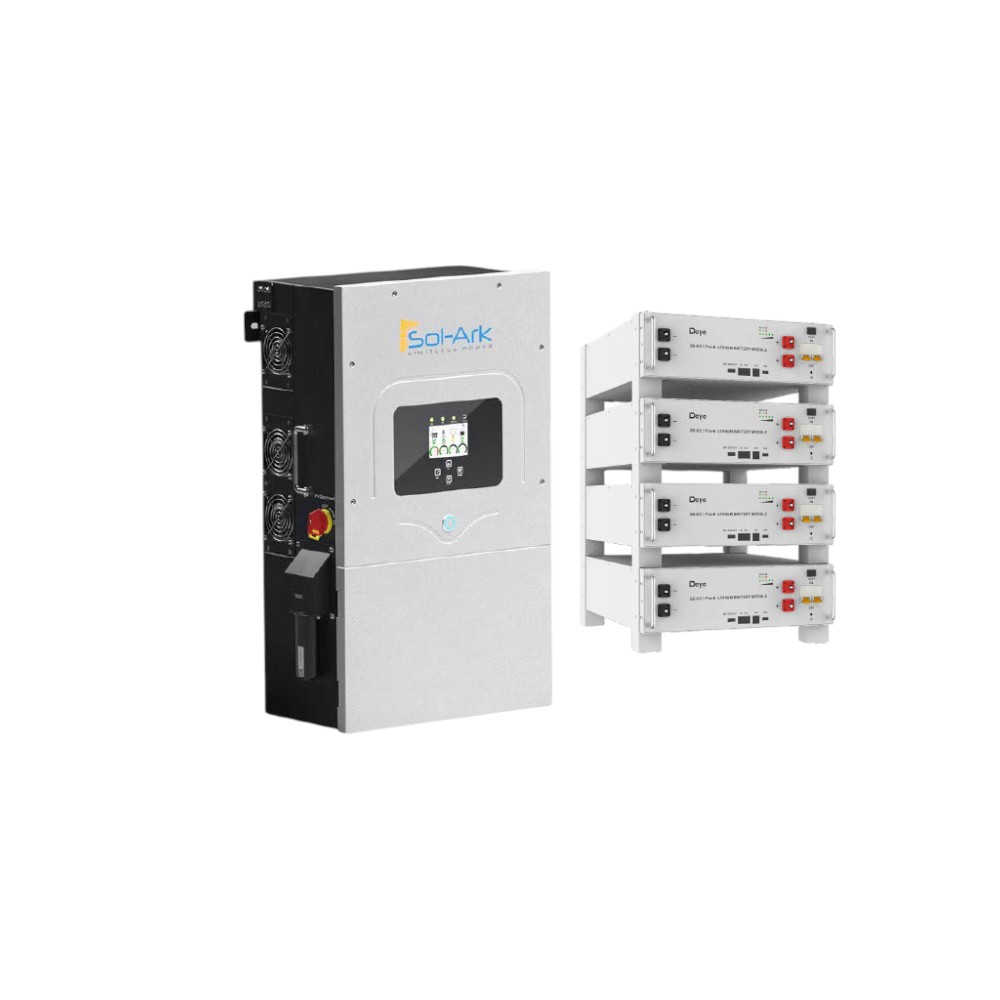

Sol-Ark 15K-2P Hybrid Inverter With Four Deye LFP 5 kWh Batteries (20kwh)
$15,699.00
Key Features:
- Most Backup Power
- 15kWac Solar System
- 20kwh Batteries
- 200A Grid Pass-Through
- Multiple Solar Options
- 6X DC Solar Ports
- 3X Full Sized MPPT
- 19kW AC Coupling
- Rapid Shutdown Controls
- Flexible Battery Choice
- 275A Battery Charger
- 2X 48V Battery Ports
- UL9540 Options Available
- Seamless Grid Control
- Multi-Season Time-of Day Settings
- Automatic 5ms Transfer Time
- Virtual Power Plant Ready
- EV or Generator Ready
- Two-Wire Start Generator
- Automatic Shed EV Based on Time of Use
- Single Circuit Smart Load Functionality

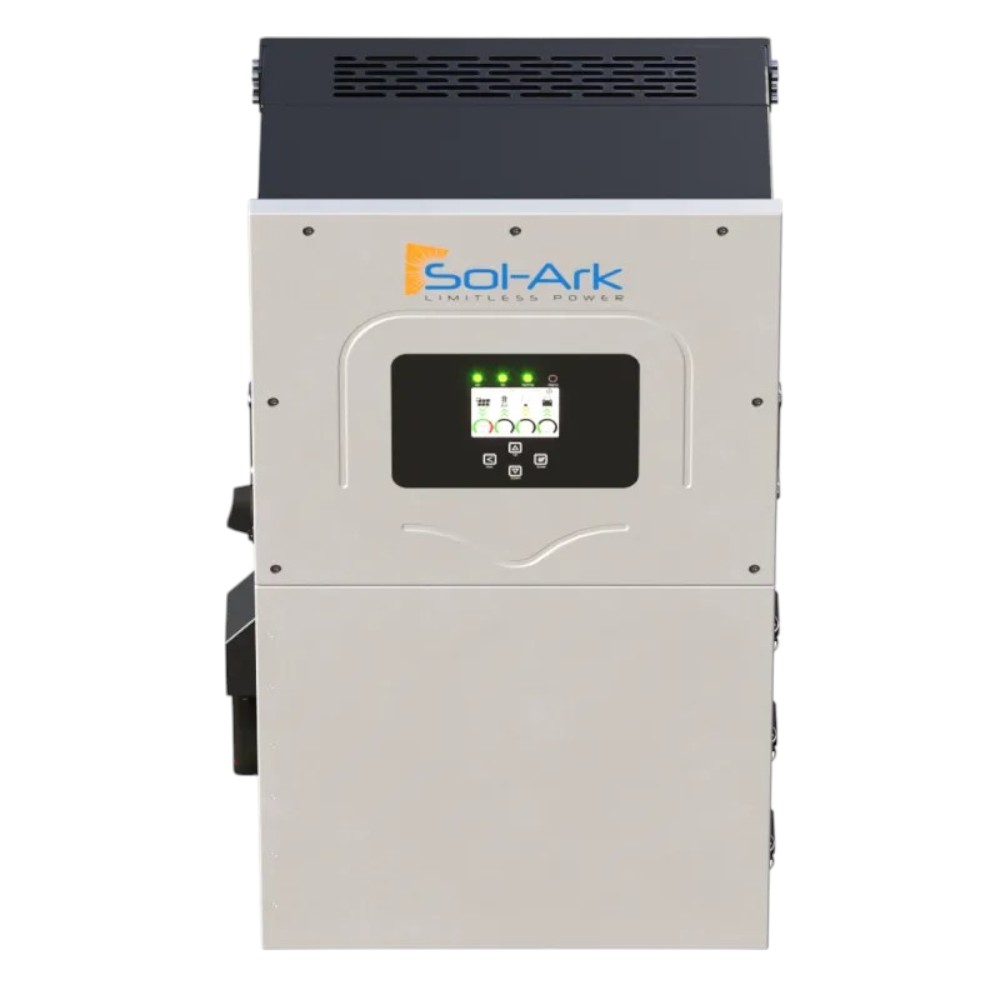

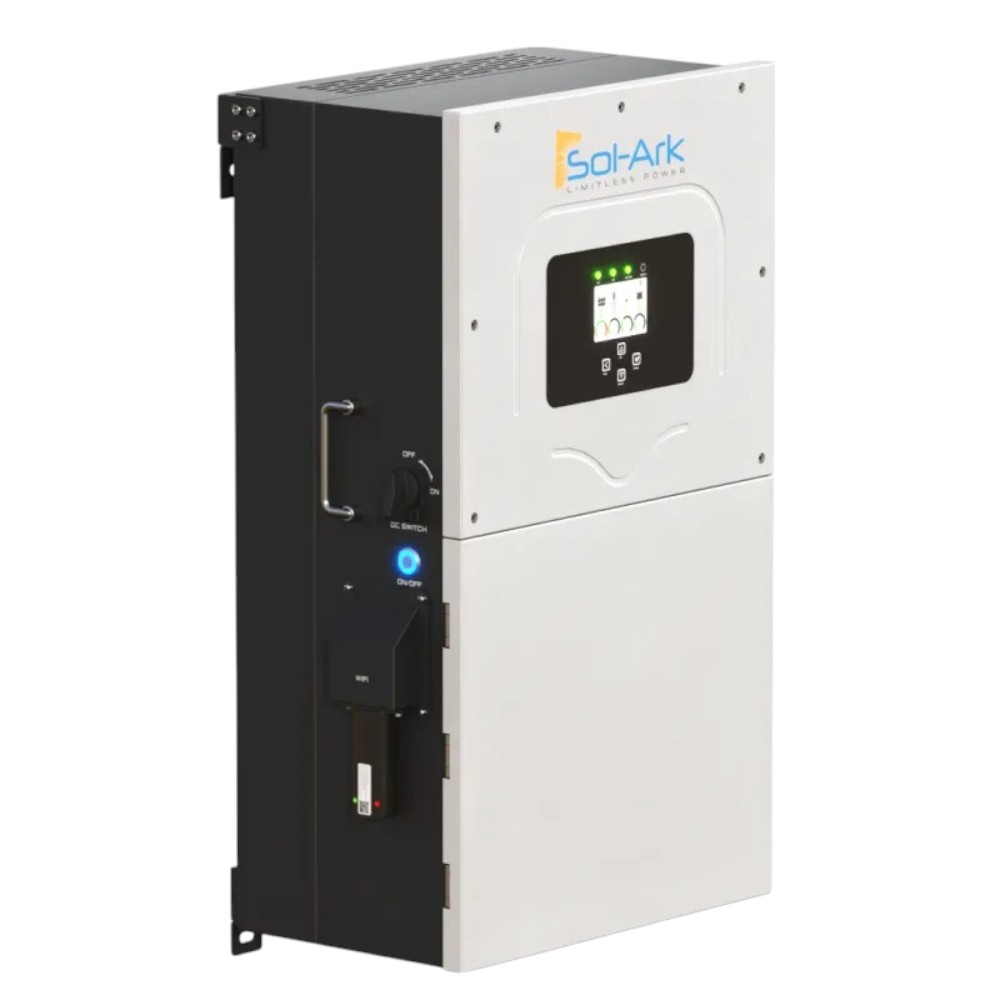

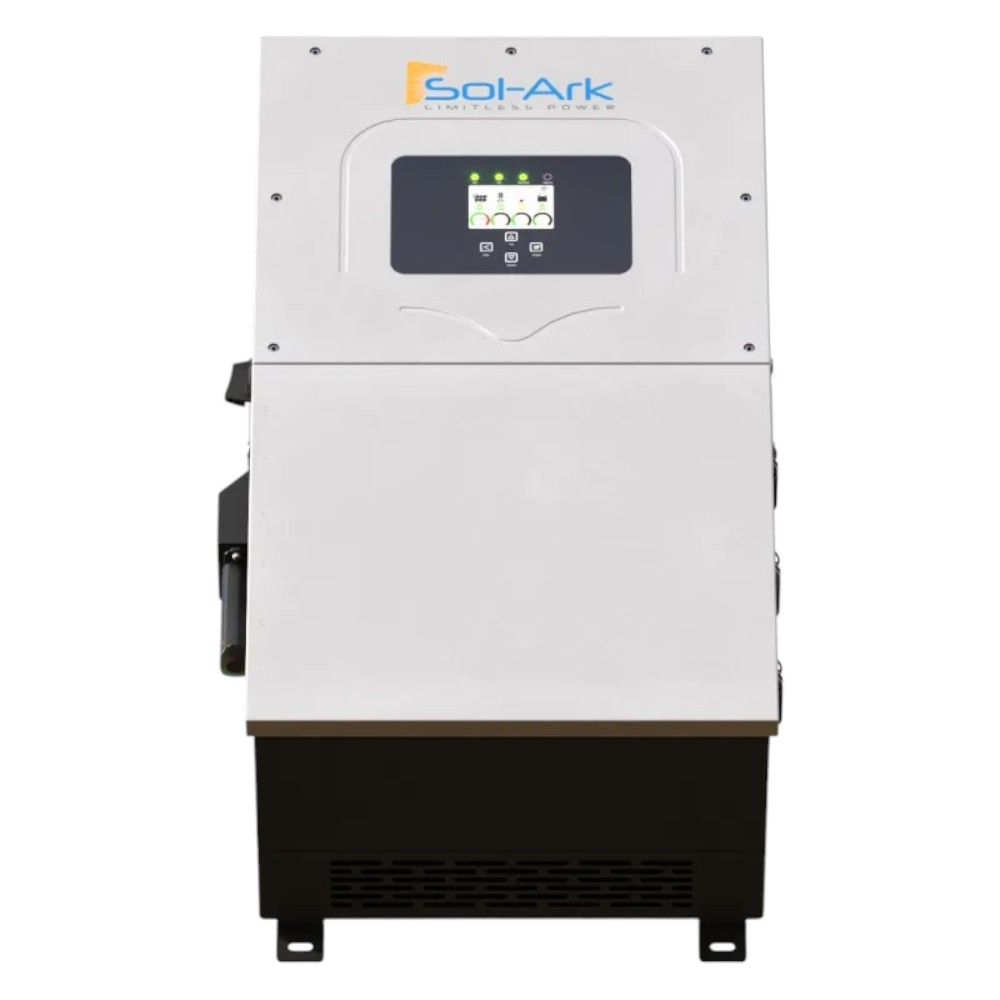

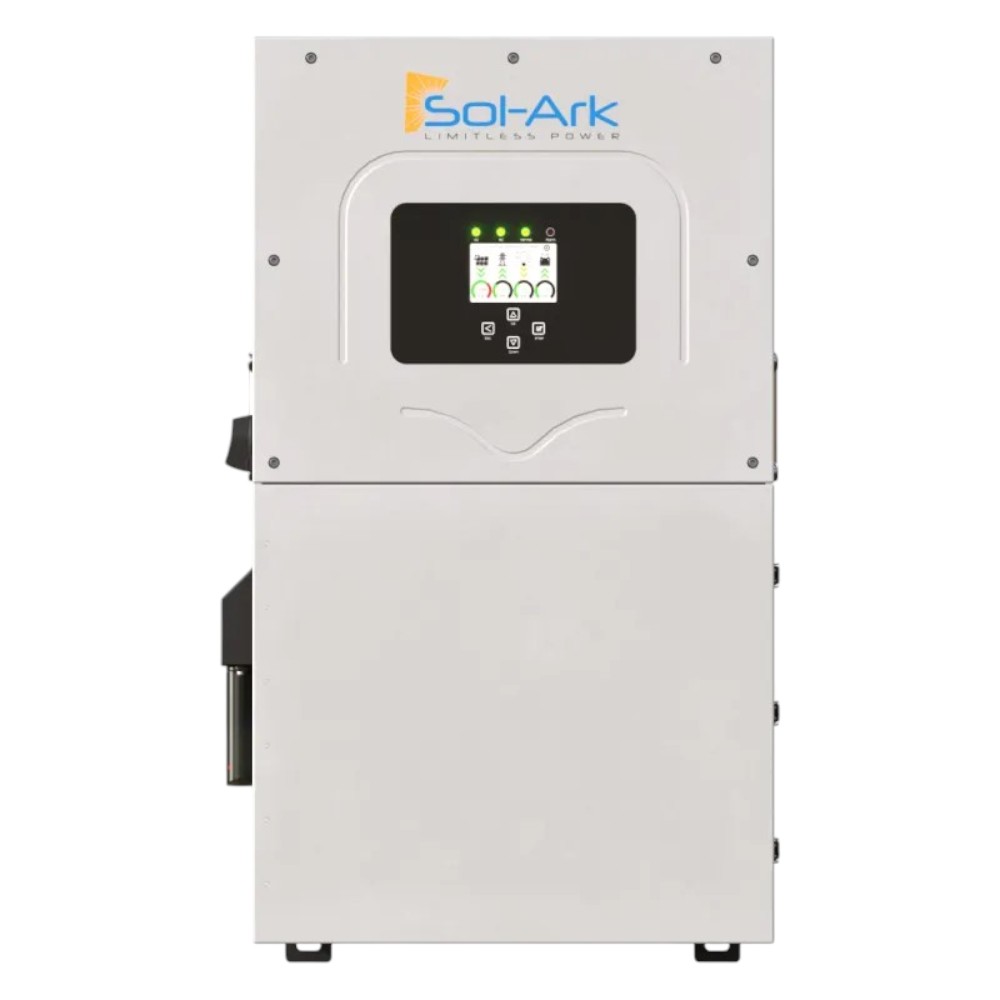

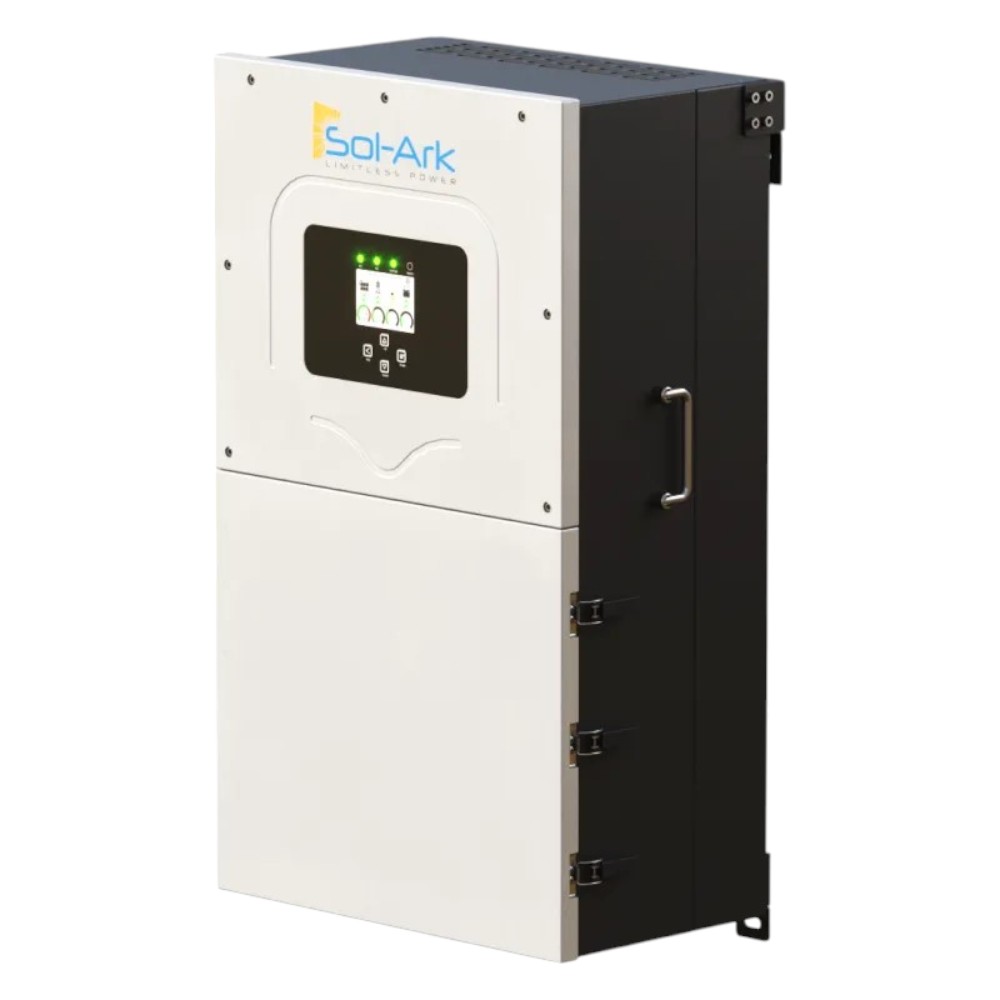

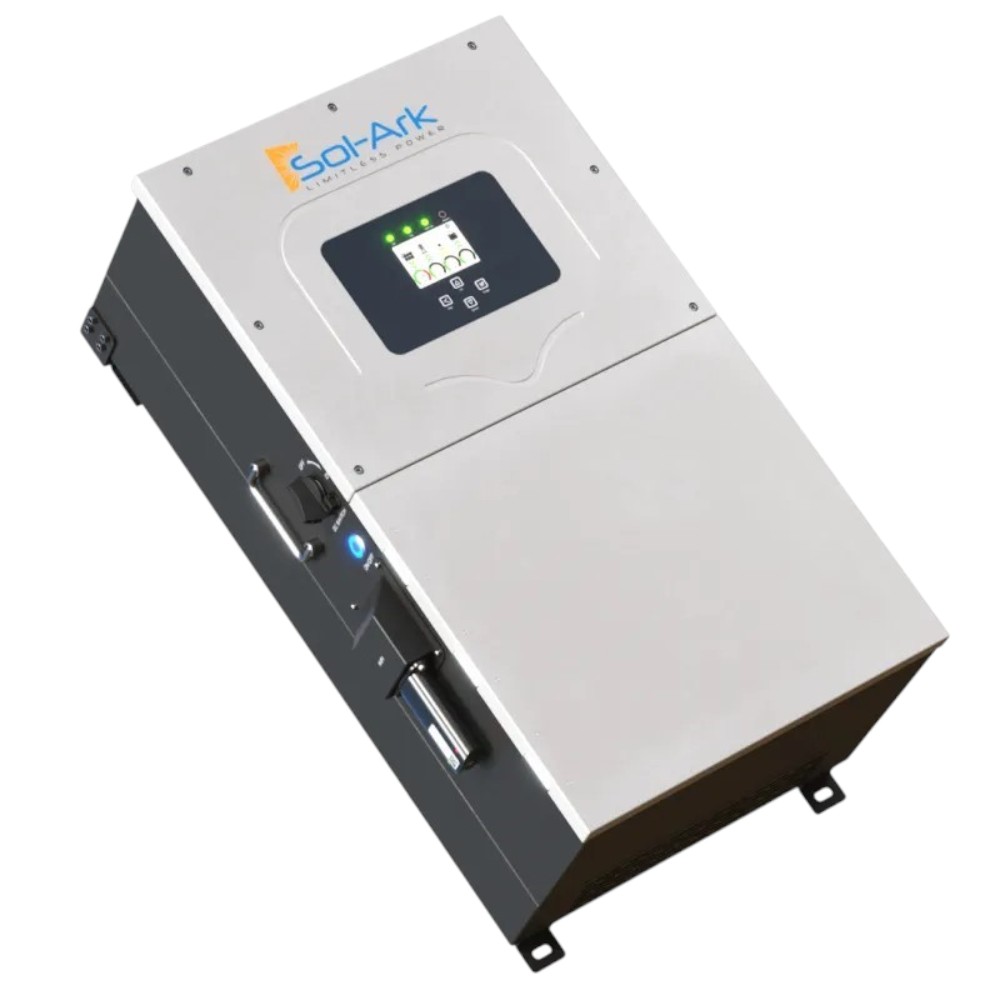

Sol-Ark® Whole Home Hybrid Inverter (15K-2P)
The Sol-Ark® Whole Home hybrid inverter is a top-tier energy management system designed for comprehensive home backup and energy efficiency. It stands out for its high capacity, flexibility, and advanced energy-saving features, making it one of the most powerful and versatile home energy storage solutions on the market.
- 15K-2P Hybrid Solar Inverter: This model can handle up to 15kW of solar energy input, making it suitable for large homes or businesses with significant power demands. The system provides whole-home backup, meaning that in the event of a grid outage, it can power your entire house, not just select appliances. This includes support for essential items like HVAC systems, lighting, and home electronics. It integrates seamlessly with solar panels, batteries, and even the utility grid to deliver continuous and reliable power.
- Electric Vehicle (EV) and Generator Support: In addition to powering your home, the Sol Ark Inverter 15k can charge electric vehicles (EVs) and work with backup generators. This flexibility ensures that during a blackout, your EV can stay charged, and your generator can provide additional support, reducing your reliance on the grid and helping to lower monthly electricity bills.
- NEM 3.0 Ready: As utility companies shift to new Net Energy Metering (NEM 3.0) policies, which reduce the financial benefits of selling solar energy back to the grid, the Sol-Ark inverter is optimized to adapt to these changes. The system is designed to store solar energy for use during peak hours, when electricity rates are at their highest. This reduces the need to draw expensive electricity from the grid and increases your savings.
- Time-of-Use (TOU) Functionality: TOU is a feature that allows the system to store energy when rates are low and use it when rates are high, further reducing costs. The built-in TOU settings let the system intelligently decide when to store and use power based on the time of day, day of the week, and even the season.
- User-Friendly LCD Touchscreen: The LCD touchscreen on the inverter makes it easy to configure and control the system. Homeowners can customize settings based on their energy usage patterns, manage the timing of energy storage, and even make adjustments seasonally to maximize savings and efficiency.

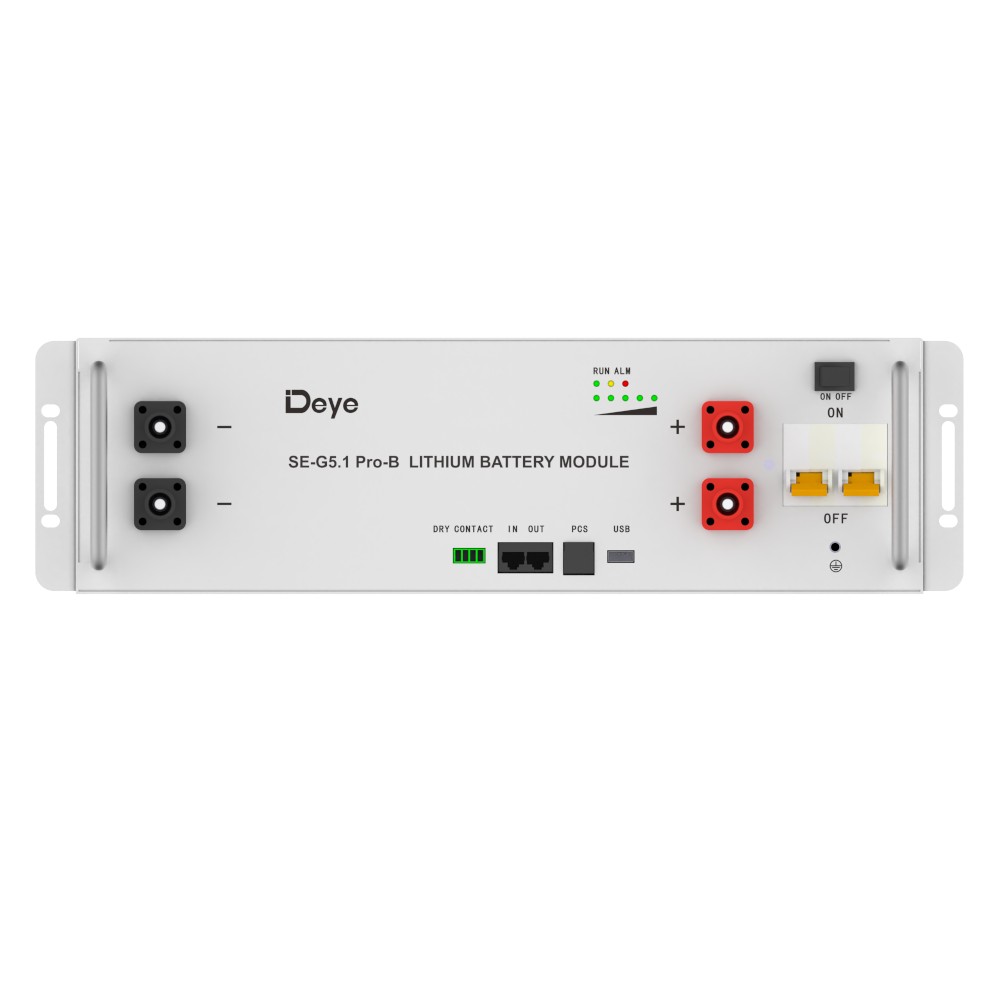

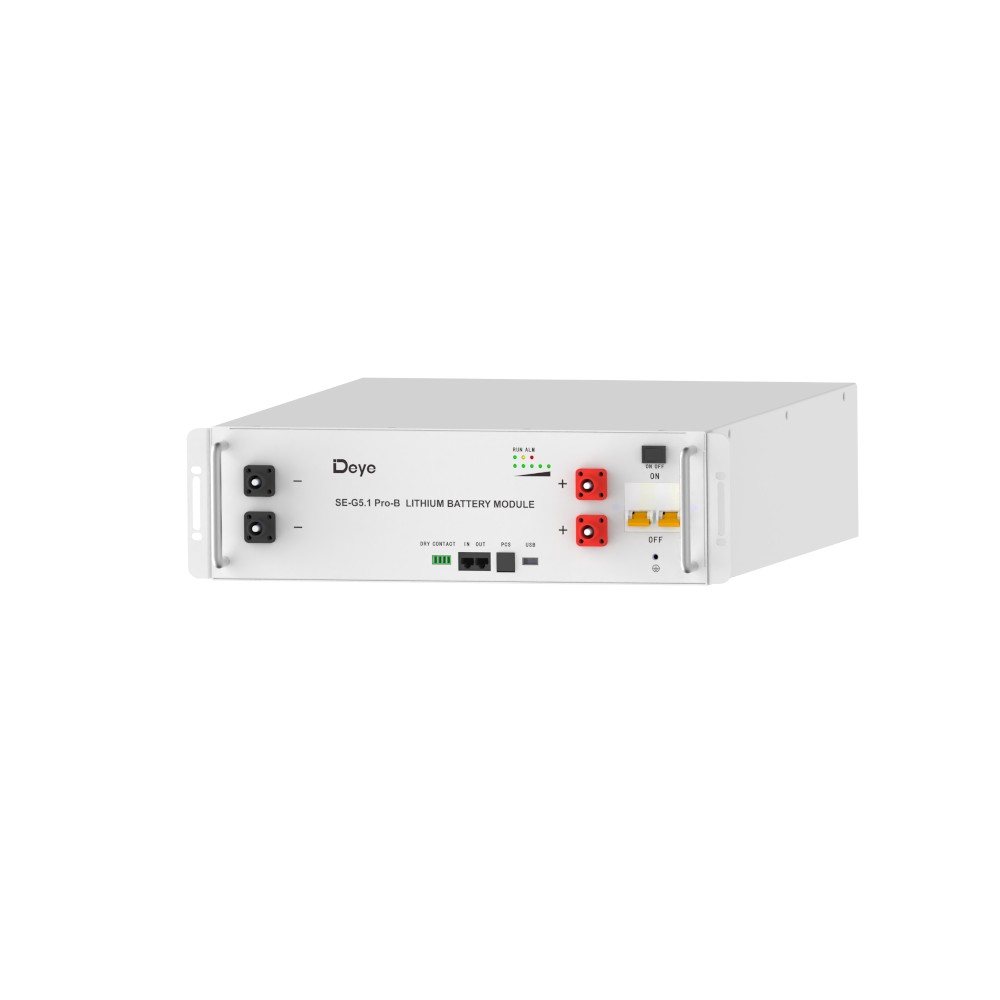

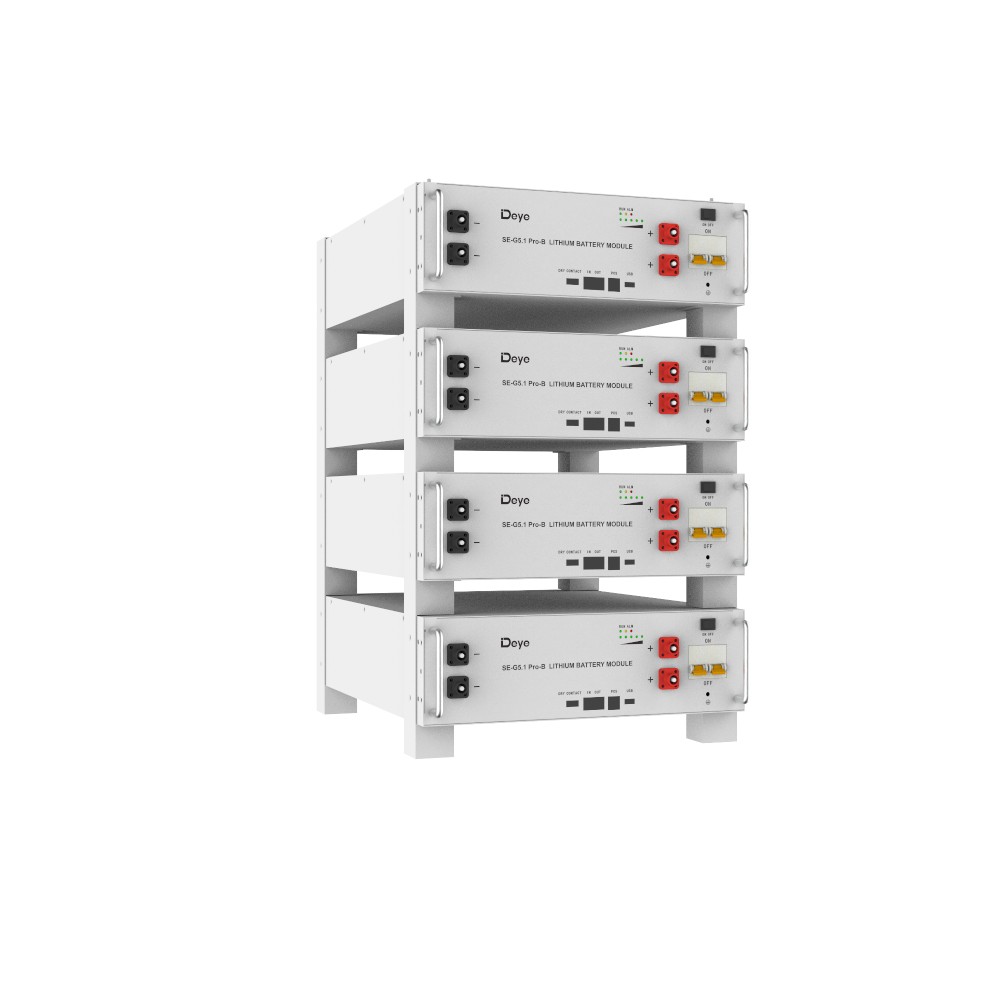

Deye SE-G5.1 Pro-B Lithium Iron Phosphate (LFP) Battery
The Deye SE-G5.1 Pro-B battery complements the Sol-Ark inverter perfectly, offering a cutting-edge solution for safe and reliable energy storage. This modular battery system can be used in both residential and commercial settings, increasing the efficiency of solar energy use and improving overall energy independence.
- Lithium Iron Phosphate (LFP) Technology: LFP batteries are known for their enhanced safety, longevity, and efficiency compared to traditional lithium-ion batteries. LFP batteries are free from cobalt, making them less prone to overheating or catching fire, ensuring a safe and reliable energy storage option.
- Modular and Flexible Design: The Deye battery is highly flexible, thanks to its modular design, which allows homeowners and businesses to scale their energy storage as needed. You can connect up to 64 units in parallel, achieving a maximum storage capacity of 327 kWh, making it suitable for a wide range of energy needs. This flexibility is especially useful in commercial applications or for homes with higher energy consumption.
- Increased Self-Consumption: The Deye battery is designed to help homeowners increase their self-consumption ratio, meaning they can use more of the solar energy they generate rather than sending it back to the grid. This feature is particularly beneficial under NEM 3.0, where exporting excess solar energy to the grid is less profitable. By storing excess energy, homeowners can draw from their battery when grid power is expensive.
- Optimized Energy Usage: The battery can also work with Time-of-Use (TOU) settings, allowing stored energy to be used when electricity rates are highest. This ensures that the energy you generate is used most effectively, maximizing savings and optimizing energy usage.
- Safe and Reliable Operation: The Deye battery can operate in a wide temperature range from -20°C to 55°C, making it suitable for various climates and environments. It is designed for high discharge power, which means it can release a large amount of energy quickly when needed. The battery’s Battery Management System (BMS) provides intelligent monitoring and protection, ensuring long-term reliability and safe operation.
- Eco-Friendly Materials: The battery uses environmentally friendly, non-toxic materials, making it a sustainable and green energy solution. This ensures that the entire battery system aligns with eco-friendly goals, reducing the environmental impact of energy storage.
Together, the Sol-Ark® 15K-2P hybrid inverter and the Deye SE-G5.1 Pro-B battery provide a comprehensive, powerful, and flexible solution for energy independence. They allow homeowners and businesses to store, manage, and optimize solar energy, reduce reliance on the grid, and significantly lower electricity costs, all while promoting sustainability.
Specification
Battery Chemistry: | LiFePO4 |
Capacity (Ah): | 100 |
Scalability: | LFP |
kWh Capacity: | Max. 64 pcs pack (327kWh) in parallel (Max. 32 pcs no external setup) |
Nominal Voltage(V): | 51.2 |
Operating Voltage(V): | 43.2~57.6 |
Max Charge Voltage: | 5.12 |
Nominal Energy(kWh): | 33.6V – 43.8V |
Usable Energy(kWh): | 4.6 |
Charge/Discharge Current(A): |
Recommend: 50 Max.: 100 Peak(2mins,25℃): 150 |
Recommend Depth of Discharge: | 90% |
Dimension(W/H/D ,mm): | 440*133*540 |
Weight Approximate(kg): | 45 |
Master LED Indicator: | 5LED(SOC:20%~SOC100%),3LED (working, alarming, protecting) |
IP Rating of Enclosure: | IP20 |
Operating Temperature: | Charge: 0~55℃( Optional heating: -20℃~55℃ ), Discharge: -20℃~55℃ |
Storage Temperature: | 0~35℃ |
Humidity | 5%~95% |
Altitude | ≤2000m |
Cycle Life | ≥6000(25℃±2℃,0.5C/0.5C,90%DOD,70%EOL) |
Installation | Wall-Mounted, Floor-Mounted, Rack-Mounted (19-inch standard cabinet, cabinet depth ≥600mm ) |
Communication Port | CAN2.0, RS485 |
Certification | UN38.3, IEC62619, CE,UK,VDE2510-50,CEI 0-21,FCC, UL1973, UL9540A |
Warranty Period | 10years |
